When you picture scaffolding, your mind probably jumps to the towering metal frames, the busy workers, or perhaps the sheer height of a construction project. But often overlooked are the small, yet incredibly critical components that allow these temporary structures to be moved safely and efficiently: the scaffolding wheels, or casters. While seemingly minor, the size of these wheels plays a profound role in the stability, safety, and operational efficiency of any mobile scaffolding system. Ignoring their importance can lead to costly delays, accidents, and even serious injuries.

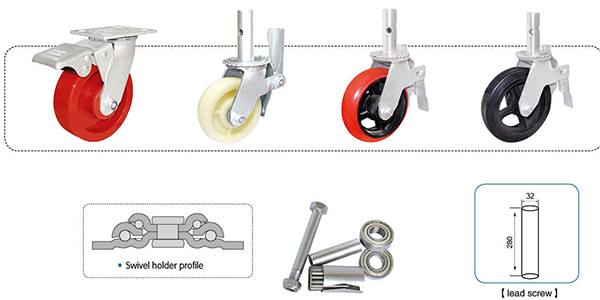

Types of Scaffolding Casters

Beyond just size, scaffolding casters come in different types, each suited for specific applications:

• Standard Swivel Casters: These are the most common type, allowing the wheel to rotate 360 degrees, providing maximum maneuverability. They typically include a foot-operated brake to lock both the wheel and the swivel.
• Fixed (Rigid) Casters: Less common on mobile scaffolding, these casters only allow movement in a straight line. They might be used in conjunction with swivel casters for very heavy loads or where precise linear movement is required.
• Adjustable Stem Casters (Screw Jack Casters): These combine a wheel with an adjustable screw jack. This allows for fine-tuning the height of the leg, compensating for uneven ground, and distributing weight evenly, adding an extra layer of stability when the scaffolding is stationary.
• Pneumatic Casters: These casters have air-filled tires, similar to bicycle tires. They provide excellent shock absorption and superior performance on extremely rough or uneven terrain, as they can "float" over obstacles. However, they are susceptible to punctures.
• Solid Casters: Made from solid rubber, polyurethane, or cast iron, these are puncture-proof and durable. They are excellent for consistent load-bearing but offer less shock absorption than pneumatic wheels.

Importance Of Scaffold Caster Wheel Size

The size of a scaffold caster wheel is not merely a dimension; it's a fundamental characteristic that directly impacts several critical aspects of scaffolding operation:

• Stability: Larger wheels generally offer a wider base and better ability to navigate imperfections, contributing to overall stability during movement.
• Load Distribution: A larger wheel has a greater contact area with the ground, which helps distribute the weight of the scaffolding, workers, and materials over a broader surface, reducing pressure points.
• Ease of Movement: Larger wheels are inherently easier to roll, especially over obstacles or uneven surfaces, due to mechanical advantage and reduced rolling resistance.
• Maneuverability: While larger wheels roll more easily, smaller wheels offer tighter turning radii in confined spaces.
• Safety: The right size wheel prevents the scaffolding from getting stuck, tipping, or becoming unstable, directly contributing to worker safety.

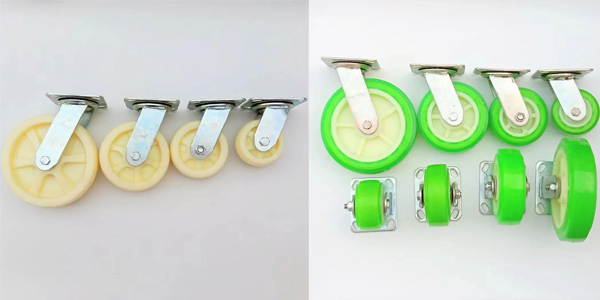

Standard Sizes Of Scaffold Caster Wheels

Scaffolding caster wheels are available in a range of standard diameters, with the imperial measurement (inches) being widely used, often alongside its metric equivalent (millimeters). Each size is generally optimized for different conditions and load requirements.

4-Inch (100mm) Scaffold Caster Wheels:

• Small scaffold casters are best for light-duty indoor scaffolding on smooth, level surfaces, offering excellent maneuverability in tight spaces. However, they have limited load capacity, struggle on uneven terrain, and are unsuitable for tall towers.

5-Inch (125mm) Scaffold Caster Wheels:

• 5-inch scaffold casters are a good mid-range option for indoor scaffolding on smooth concrete, like in warehouses. They balance compactness with better rolling performance than smaller wheels, offering decent maneuverability for short to medium-height towers. However, their moderate load capacity and limited capability on rough terrain restrict their use in more demanding outdoor or uneven environments.

6-Inch (150mm) Scaffold Caster Wheels:

• 6-inch scaffold casters are the versatile "workhorse" for general construction and renovation, offering a strong balance of load capacity, rolling ease, and maneuverability. Popular for both indoor and outdoor use, they perform well on slightly uneven surfaces and are suitable for medium to tall towers, though they may struggle with very rough terrain.

8-Inch (200mm) Scaffold Caster Wheels:

• Large, heavy-duty casters offer superior stability and performance on rough outdoor terrain, ideal for construction sites and tall scaffolding. Their size aids obstacle clearance but can limit indoor maneuverability and raise costs, though pneumatic options boost shock absorption.

Customized Sizes And Specialized Applications:

Beyond these standard sizes, some manufacturers offer larger or specialized wheels for unique applications. These might include:

• 10-inch (250mm) and Larger: For exceptionally heavy-duty scaffolding, moving massive structures, or extremely rugged industrial environments. These are almost always pneumatic.
• Specialty Treads: Wheels with specific tread patterns for enhanced grip on slippery surfaces or flotation on soft ground.
• High-Temperature Wheels: For industrial applications involving extreme heat.
• Non-Marking Wheels: For sensitive flooring where marks cannot be left.

Factors To Consider When Selecting Scaffold Caster Wheel Size

Choosing the appropriate scaffold caster wheel size is a critical safety and operational decision. Several factors must be carefully evaluated:

Material:

• Rubber (Solid or Pneumatic): Good for shock absorption, non-marking, and grip. Pneumatic is best for very rough terrain.
• Polyurethane: Durable, high load capacity, resistant to many chemicals, good for smooth to moderately rough surfaces.
• Cast Iron/Steel: Extremely high load capacity, durable, but very hard on floors and offer no shock absorption. Best for industrial, very heavy-duty applications on robust surfaces.
• The choice of material will also influence the wheel's performance at a given size.

Weight Capacity:

• This is paramount. The combined load rating of all casters on the scaffolding must comfortably exceed the total anticipated weight of the scaffolding structure, workers, tools, and materials.
• Always refer to the manufacturer's load rating per wheel and factor in a significant safety margin. Larger wheels generally have higher load capacities.

Surface Conditions:

• Smooth/Finished Floors: Smaller, solid wheels (4-6 inch) can suffice.
• Moderately Rough/Uneven (Asphalt, Compacted Dirt): 6-8 inch solid or pneumatic wheels are generally recommended.
• Very Rough/Loose (Gravel, Mud, Debris): 8-inch or larger pneumatic wheels are almost always necessary for stability and ease of movement.

Mobility Requirements:

• Frequent Movement / Long Distances: Larger wheels (6-8 inch) reduce effort and rolling resistance.
• Tight Spaces / Frequent Turns: Smaller wheels (4-5 inch) may offer slightly better maneuverability, but this must be balanced against load and surface.
• Static Use with Occasional Repositioning: For scaffolding that mostly stays in one place but needs occasional small adjustments, even smaller wheels might be acceptable if the surface is good.

Environment:

• Indoors vs. Outdoors: Outdoor environments generally demand larger, more robust wheels to handle varied terrain and debris.
• Temperature Extremes: Ensure wheel materials can withstand ambient temperatures without degradation.
• Chemical Exposure: If chemicals are present, select wheel materials resistant to them.
• Debris: Construction sites often have sharp objects. Solid or puncture-resistant wheels are preferred over standard pneumatic ones in such conditions.

Benefits Of Using The Correct Scaffold Caster Wheel Size

Investing in and using the appropriately sized scaffold caster wheels yields significant benefits that extend far beyond simply moving the structure:

• Enhanced Stability: Proper wheels, especially larger ones, provide a stable base, reducing tipping risks during movement.
• Improved Mobility: Correctly sized wheels significantly ease scaffolding relocation, boosting efficiency and preventing stuck casters.
• Efficient Load Distribution: Larger wheels spread the scaffold's weight over a greater area, minimizing floor damage and frame stress.
• Versatility: Choosing a versatile wheel size (e.g., 6 or 8-inch) allows the same scaffolding system to be used across diverse job site conditions, saving time and inventory costs.
• Increased Safety & Compliance: Using the correct wheel size aligns with safety standards, mitigating risks like tipping and wheel failure, ensuring a safer work environment.

Summary

Scaffold caster wheels are far more than just "things that roll." Their size is a critical determinant of a mobile scaffolding system's safety, stability, and operational efficiency. From the compact 4-inch wheels suited for pristine indoor environments to the robust 8-inch casters designed for rugged outdoor construction sites, each size serves a distinct purpose.

Making an informed decision on wheel size requires a thorough assessment of the job site's surface conditions, the required load capacity, the height of the scaffolding, and the frequency of movement. Prioritizing safety by selecting the appropriate wheel type and size, combined with regular inspections and adherence to best practices, ensures that your mobile scaffolding remains a safe, productive, and invaluable tool on any project. Don't underestimate the profound impact of these unsung heroes – the right scaffold caster wheel size truly makes all the difference.

FAQ

Why is the size of scaffolding wheels important?

• The size of scaffolding wheels (casters) is crucial because it directly impacts the stability, safety, ease of movement, and load distribution of the mobile scaffolding tower. Using the wrong size can lead to instability, tipping hazards, difficulty in moving the scaffold, and even damage to the equipment or work surface.

What are the common standard sizes for scaffold caster wheels?

• The most common standard sizes for scaffold caster wheels are 4-inch (100mm), 5-inch (125mm), 6-inch (150mm), and 8-inch (200mm) in diameter. Larger, specialized sizes (e.g., 10-inch) are also available for very heavy-duty or rough terrain applications.
