Falls continue to cause serious work-related injuries and deaths in industries and construction sites worldwide. For the project manager, the owner of a large fleet of equipment, and the safety officer, an effective fall protection plan is more than just compliance with regulations; it can save lives and prevent catastrophic losses.

To create a zero-harm work environment, you must know how to use the fall protection equipment to protect your employees from falling from heights. By explaining the various types of fall protection equipment and how they can be used for specific applications, you will be able to make a qualified purchase for your fall protection needs and do everything possible to protect your employees from the potential of serious injury or death due to a fall from heights on your worksite.

1. The Fall Protection Hierarchy: Personal vs. Engineering Controls

Before diving into specific gear, it is crucial to understand that fall protection is divided into two primary operational philosophies: Passive Fall Protection (Engineering Controls) and Active Fall Protection (Personal Systems).

A smart safety strategy always prioritizes eliminating the hazard or collective engineering controls before relying on personal protective equipment (PPE).

Passive Fall Protection Systems

• Passive systems require no active participation, adjustment, or wear by the worker once installed. They act as a permanent or temporary physical barrier between the worker and the fall hazard.

Active Fall Protection Systems

• Active systems rely on specialized equipment that workers must physically wear and connect to an anchor point. These are utilized when physical barriers like guardrails are impractical due to space constraints or the nature of the work.

2. Essential Types of Passive Fall Protection Equipment

When collective site safety is the goal, passive systems are the first line of defense. They protect everyone on the deck simultaneously, making them highly cost-effective for large-scale projects.

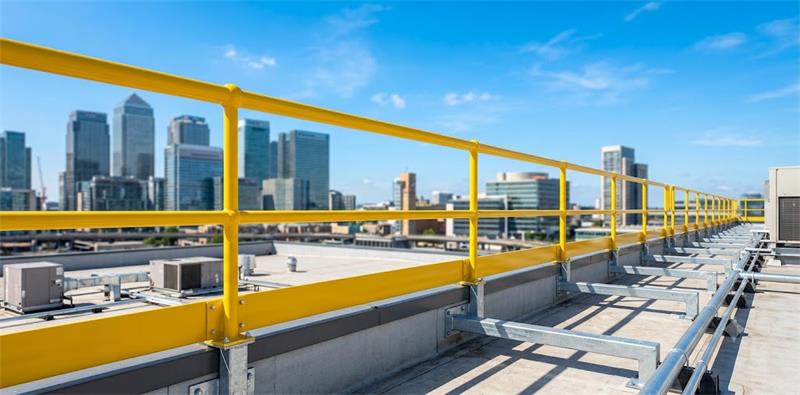

Guardrail Systems

The most common method of passive fall protection is the guardrail system that can be installed along open edges, roof edges, and scaffold platforms.

• A typical Guardrail System consists of a Top Rail, a Mid Rail, and a Toe Board. The Top Rail must be a minimum of 42” high. OSHA sets the requirements for Guardrails.
• Typical Uses: Roof edges, industrial walkways, and scaffolding. Both permanent and temporary.

Safety Net Systems

Safety nets are primarily used by workers who roam large worksite areas at height, such as in bridge construction or high-rise steel erections.

• Function: A fall is not meant to be prevented by a safety net. The safety net is to catch the fall and absorb the high-energy release to prevent severe injury.
• Maintenance: The safety nets are regularly checked for any damage or debris on the surface of the net. In addition, they are checked for signs of UV degradation and any tears in the net.

Warning Lines and Control Zones

Used primarily on flat or low-slope roofs, warning lines consist of ropes, wires, or chains flagged at highly visible intervals. They form a barrier erected at a specific distance (usually at least 6 feet) from the roof edge to alert workers that they are approaching a fall hazard area.

3. Active Fall Protection: Understanding the Personal Fall Arrest System (PFAS)

When passive systems cannot be implemented, a Personal Fall Arrest System (PFAS) becomes mandatory. A PFAS does not prevent a worker from falling over the edge; instead, it safely stops (arrests) a fall mid-air before the worker hits the lower level.

An effective PFAS relies on the ABCD formula, where every single component must work flawlessly in unison.

+-------------------------------------------------------------+

|                     The ABCD of a PFAS                      |

+--------------------------+----------------------------------+

| A - Anchorage            | The secure point of attachment   |

| B - Body Wear            | The full-body safety harness     |

| C - Connecting Device    | Lanyards or Self-Retracting Lifelines |

| D - Deceleration Device  | Shock absorbers to reduce force  |

+--------------------------+----------------------------------+

A – Anchorage (The Anchor Point)

The anchor point is the secure structural foundation to which the rest of the system connects.

Fall protection systems must resist enormous forces of up to 5,000 lbs. per worker attached (22.2 kN) during a fall. Design engineering must then double this fall force for system design.

Types of SRL Anchors: Permanent Anchors (D-rings – certified steel) attached to the structure permanently, and Temporary/ Mobile Anchors (e.g., beam clamps, roof anchors, heavy deadweight anchor carts).

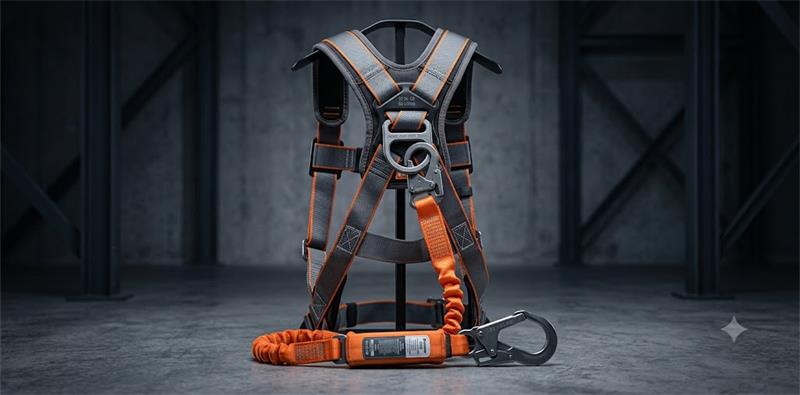

B – Body Wear (Full-Body Harness)

Fall protection body-wear for fall arrest has changed over the years. Acceptable body-wear today for fall arrest is the full-body safety harness. The older style safety belts for body wear are strictly forbidden for use as fall protection body-wear for fall arrest, as they can cause severe internal injury during a fall.

Full body harnesses are designed to distribute the fall forces acting on the user to the strongest points of the user's body. These are the thighs, the pelvis area, the chest, and the shoulder area.

Ring Placement: D-Ring Connection Points - Fall arrest is done by connecting the safety harness to the fall protection system by means of the dorsal D-ring, positioned between the shoulder blades. Sternal (chest) D-ring connection points are generally only allowed for use with a guided climbing system or for rescue purposes.

D-C & D – Connecting & Deceleration Devices

The connector is attached to the anchor point and is usually fitted with a deceleration device to slow the worker’s fall.

• Shock-Absorbing Lanyards: These are typically constructed with heavy-duty webbing and have a core in the lanyard. The core of the shocker lanyard will 'tear' or 'shock' during a fall. This, in turn, will stop the fall of the worker by absorbing the fall force to a safe level (approximately 1,800 lbs). or less.

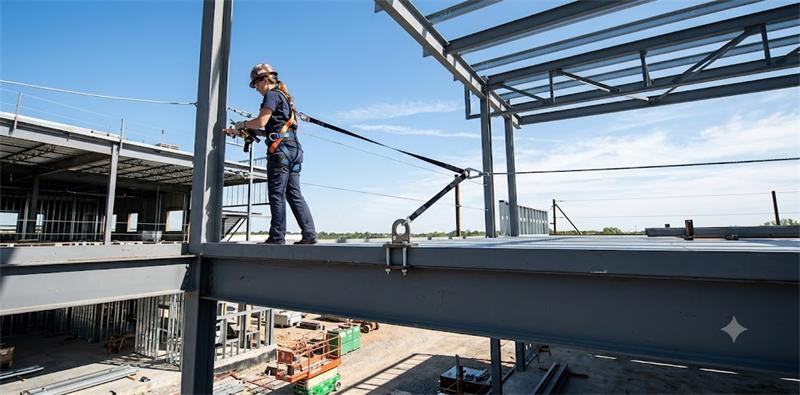

• Self-Retracting Lifelines (SRLs): These Lifelines are commonly referred to as “seatbelt-style” and are used in today’s workplace. The Self-Retracting Lifeline extends out as the worker moves about. In the event of a fall, the internal centrifugal brake locks up instantly to stop the fall. Typically, the fall distance will be only a few inches. This is why SRL’s are so very popular. The other reason is that the SRL’s decrease the fall clearance distance required when using a 6-foot lanyard.

4. Work Positioning and Fall Restraint Equipment

Not all active systems are designed to catch a falling worker. Two other critical setups are designed to modify user movement to avoid the fall altogether.

Fall Restraint Systems

• A fall restraint system acts like a dog leash. It connects the worker to an anchor point with a fixed-length lanyard that is physically too short to allow the worker to reach the edge of a roof or platform. Because the worker cannot physically fall, these systems do not require shock absorbers.

Work Positioning Systems

• Commonly used by tower climbers, rebar workers, and arborists, work positioning equipment holds a worker in place on a vertical surface (like a wall or pole), leaving their hands free to work.
• Crucial Note: Work positioning systems hold you up, but they do not arrest a fall. They must always be backed up by a separate personal fall arrest system.

·

5. Horizontal and Vertical Lifelines

When workers need to move horizontally or vertically over long distances, fixed single anchor points become impractical. This is where lifeline systems come in.

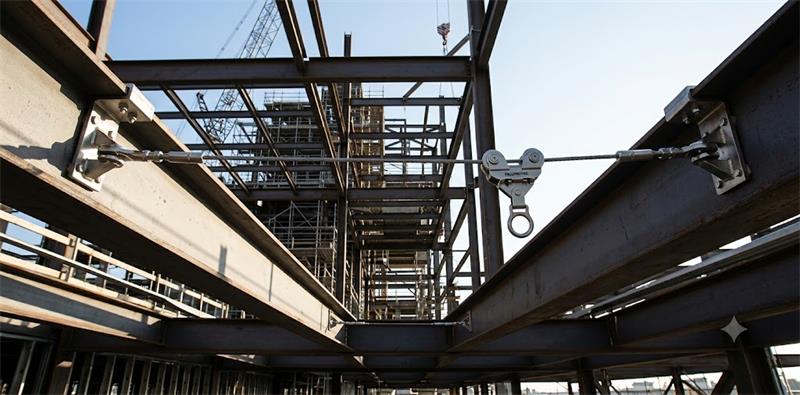

• Horizontal Lifelines (HLL): A flexible cable or webbing line connected between two end anchors. Workers attach their lanyards to this line and can walk parallel to an edge with continuous protection.
• Vertical Lifelines (VLL): A rope or cable running vertically down a ladder or structure, fitted with a mobile rope grab. The rope grab follows the worker up and down smoothly but locks tight instantly onto the vertical line if a downward fall is detected.

6. Inspection, Maintenance, and Compliance Checkpoints

Owning the best fall protection equipment types means nothing if the gear is poorly maintained or improperly rated. To stay compliant with international safety standards like OSHA or ANSI, enforce the following protocols:

• Pre-Use Inspections: Every worker must inspect their harness, lanyard, and hardware before every shift. Look for frayed stitching, chemical burns, cuts, or distorted metal D-rings and snap hooks.
• Annual Competent Person Inspections: Beyond daily checks, a certified "competent person" must perform a thoroughly documented inspection of all fall protection assets at least once a year.
• The 5-Year Rule Myth: While some older standards suggested a strict 5-year lifespan for synthetic safety gear, modern standards state that if a harness passes inspection and has no expiration date mandated by the manufacturer, it remains fit for use. However, any equipment that has been subjected to a fall event must be removed from service immediately and destroyed.

Conclusion

Selecting the right types of fall protection equipment depends entirely on your specific work environment, structural limitations, and project duration. Whether you are outfitting a high-rise construction crew with premium self-retracting lifelines, installing collective guardrails on a public utility plant, or managing a heavy rental inventory of compliant safety gear, putting safety first pays dividends in productivity, reputation, and human lives.

Contact the Safety Specialists Today

Need to upgrade your fleet with reliable, OSHA-compliant fall protection gear? Or looking to train your crew on proper harness fitment and inspection? [Contact our safety engineering team today] for expert consulting, bulk wholesale pricing, and premium equipment solutions tailored to your industry.

FAQ

At what height is fall protection equipment required by OSHA?

Under OSHA regulations, employers must provide fall protection at the following elevations:

• 4 feet in general industrial workplaces.

• 5 feet in shipyards.

• 6 feet in the construction industry.

• 10 feet when working on scaffolding.

• Regardless of the distance, fall protection must always be provided when working above dangerous equipment or machinery.

Can a safety harness be reused after catching a fall?

• No. Any piece of fall protection equipment—including harnesses, shock-absorbing lanyards, and self-retracting lifelines—that has been subjected to the forces of a fall event must be removed from service immediately and destroyed. Even if there is no visible damage, the internal fibers and hardware have been severely stressed and can no longer guarantee protection for a second fall.
