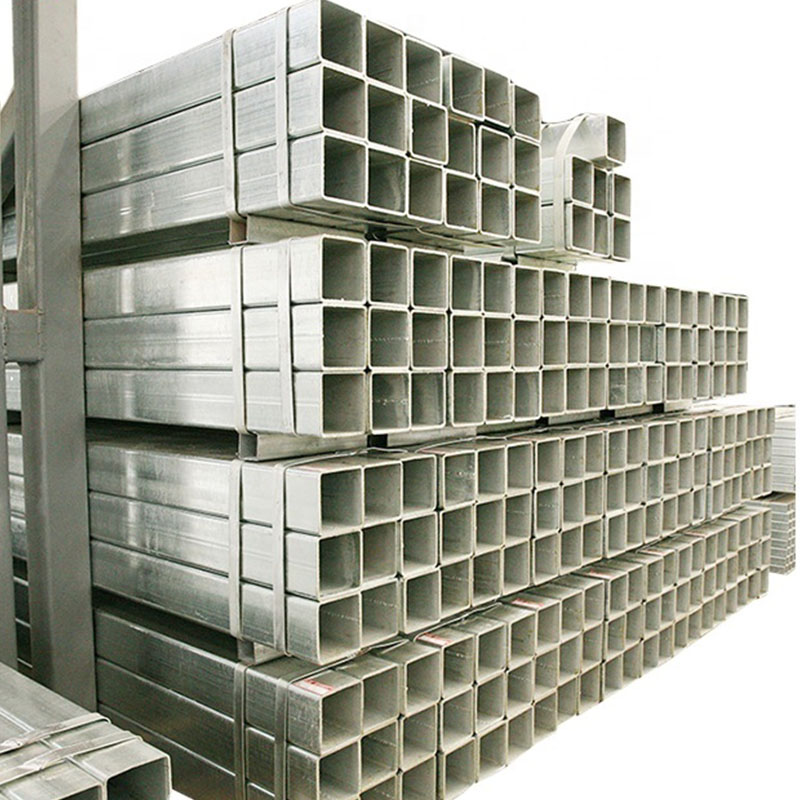

Field failures due to dimensional deviation, weld seam splitting, and rapid corrosion of load-carrying structures can be eliminated by using premium structural square sections, such as those designed for high-load structures and produced as premium structural hollow sections utilizing High-Frequency Induction Welding (HFW), followed by post-weld heat treatment to remove internal residual stress. Such material is ideal for use in high-rise steel buildings, heavy industrial structures supporting crane structures, complex curtain walling structures, and large bridge scaffolding.
Technical Specification Matrix (Engineering Grade)
All structural hollow sections are manufactured from premium, fully killed steel heats and are accompanied by complete chemical and mechanical traceability profiles matching global structural codes.
|
Technical Parameter |
Engineering Specification Range |
Compliance Standards |
|
Section Dimensions (OD) |
10*10mm up to 500*500mm (High-Demand: 50*50mm |
ASTM A500 Grade B/C, EN 10219, JIS G3466 |
|
Wall Thickness (WT) |
0.5mm to 50.0mm (Structural Benchmarks: 2.0mm, 3.0mm, 5.0mm) |
Tolerances strictly held ≤±0.5% |
|
Standard Length |
6000mm（6m）standard; custom cut-to-length up to 12000mm |
Straightness deviation minimized to ≤ 1/1000mm |
|
Metallurgical Grades |
Q235B, Q355B/D/E, ASTM A500 Gr.B, S235JR, S355J2H |
100% Ladle-Refined Prime Steel Only |
|
Surface Engineering |
Bare/Lightly Oiled, Zinc-Rich Primer, Hot-Dip Galvanized (HDG) |
HDG Coating Mass ≥ 400g/m2 (ISO 1461) |
Procurement Comparison Matrix
|
Evaluation Criteria |
Our Engineered Structural Tube |
Commercial Grade Commodity Pipe |
Project Liability Impact |
|
Material Traceability |
100% verifiable Heat Numbers linked to MTC EN 10204 3.1. |
Missing or pooled mill certificates; unverified steel scrap origin. |
Triggers mandatory project shutdowns or structural failure during building audits. |
|
Corner Geometry (R-Angle) |
Controlled strictly between 1.5T to 2.5T (T = Thickness). |
Sharp, inconsistent corners with variable thickness. |
Sharp corners concentrate internal stresses, leading to unpredictable failure under torsional loads. |
|
Internal Weld Management |
Internal flash removed or controlled; verified via inline Eddy Current. |
Internal weld bead remains intact; visual inspection only. |
Hinders insertion of internal structural sleeves, causing alignment delays. |
Core Construction Applications
Our square hollow sections (SHS) are primary load-bearing members engineered to resist multi-directional torsional and axial forces across severe building topologies:
- Industrial Infrastructure & Clear-Span Trusses: Heavy roof trusses for logistics, manufacturing, and airport terminals across the globe.
- Architectural Facades & Structural Curtain Walls: The main vertical support system for tall buildings with heavy glazing, high straightness, and low deflection support grids for dynamic lateral loads.
- Civil Infrastructure Shoring & Bridge Scaffolding: Our heavy-duty, high-capacity modular towers and temporary structures are certified to yield under dead load and are used as shoring or scaffolding for civil engineering projects.
