Introduction: The Engineering Imperative of Bracing

When a temporary works structure is designed and erected, whether it be scaffolding, formwork, or shoring, the primary aim is to create a stable system that is able to adequately support any superimposed loads without failure. Although the vertical standards and horizontal ledgers are designed to take vertical (gravity) loads, the overall strength and integrity of the system is only assured when its mechanism for resisting the lateral (horizontal) forces is also efficacious.

The lateral forces generated by wind or seismic activity, impact forces created during working operations, or uneven loading present the greatest possibility of racking, sway, or progressive collapse.

The diagonal brace is the fundamental engineering element that is designed specifically to counteract these lateral forces. The introduction of diagonal bracing within a rectilinear bay creates triangulation, which converts an otherwise unstable orthogonal system into a rigid, stable truss. This article provides a technical analysis of the diagonal brace, its critical applications, and particularly the non-negotiable best practice parameters that surround its installation.

The Fundamental Principle: Triangulation and Load Path Management

From the point of view of the principles of mechanics of solids, a four-sided frame (that is, a rectangular bay) is a mechanism, because it has no intrinsic power to resist a lateral force without racking or deformation. If, however, we place a single diagonal strut in this bay, we convert the two compartments or areas into two triangles. A triangle is the most stable and simplest of all geometric forms, for it has a specific shape, and the shape cannot be changed or altered in any way unless we change the length of one of its members. As soon as a horizontal force is applied to a braced bay, for instance, the diagonal brace will be put into action. It changes the shear on the bay into axial stresses, either in tension (pulling) or in compression (pushing), on its own line. The result of this is that the axial stresses are transmitted through the nodes (or joint connections) on down the line of load into the foundation or point of support of the building.

With this system, there would appear to be weighty bending moments induced at the joint connections by lateral forces and the possibility of joint failure, member buckling, and ultimately disastrous collapse. The result of this is that a diagonal brace is not an ordinary adjunct or factor of so great additional value, but is absolutely necessary, on which the inherent stability and safety of the whole structural system depends.

Critical Applications in Scaffolding Systems

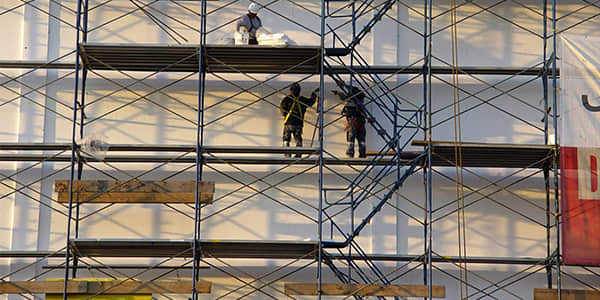

Scaffolding systems - especially ones that are of excessive height and exposed to wind - are vulnerable to lateral forces. Diagonal bracing in scaffolding systems serves two main functions: stability of the scaffolding system and meeting regulations.

Mitigating Racking and Sway

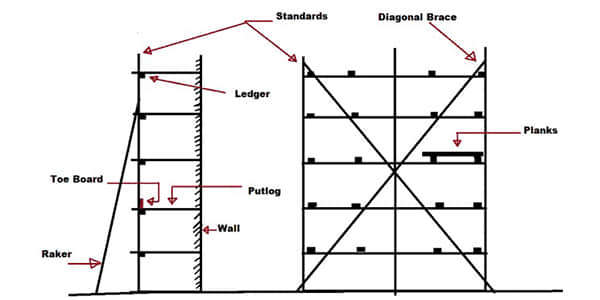

In two basic planes, diagonal braces are provided in order to create a complete system of bracing or stability:

• Longitudinal Bracing (Façade Bracing): This is installed parallel to the face of the building, usually arranged in a "zig-zag" (K-bracing) or "X" pattern across several bays, which will prevent the entire run of scaffold from oscillating longitudinally.
• Transverse Bracing (Cross Bracing): This is installed perpendicular to the face of the building, usually at the end frames, or at specified intervals, and is necessary to prevent the scaffold from collapsing toward or away from the structure that it is to service.

This double system keeps the scaffold vertically under all loads, as well as square in all respects under all loadings, or when subjected to dynamic loads due to workers or transportation of materials, etc.

Adherence to Regulatory and Compliance Mandates (OSHA/EN)

The relevant international safety regulations, including those of the U.S. Occupational Safety and Health Administration (OSHA § 29 CFR 1926.451) and European standards (EN 12810/12811), are categorical in requiring both the use and certain dimensional design of diagonal bracing. Such specifications are not to be taken as recommendations; they are strict obligatory specifications based on exhaustive engineering analysis. Such provisions specify not only the maximum number of unbraced bays, but also the angles of installation required (generally 35° to 55° from the horizontal) and the load-bearing capacities of the bracing connections. The penalty to both building contractors and rental concerns for lack of compliance is a substantial legal, financial, and reputational risk.

Indispensable Function in Formwork and Shoring

The forces involved in concrete construction make diagonal bracing equally, if not more, critical in formwork and shoring applications.

Counteracting Hydrostatic Pressure in Formwork

Wet concrete acts as a liquid, exerting considerable hydrostatic pressure on the formwork. These lateral pressures increase with the height of the pour and the speed at which it is done. Brace rods, generally in the form of heavy-duty, adjustable push-pull props, are used to:

• Plumb and Align: Guarantee that the form is perfectly vertical before the pour.
• Resist Pressure: Supply the rigidity necessary to prevent the forms from bulging, defecting, or bursting during the pour.

Such braces transfer the lateral hydrostatic loads from the face of the forms to the ground slab or other secure anchoring point directly.

Stabilizing Shoring Towers

The shoring (which is to take upon itself the great weight of concrete slabs while they are curing) consists of tall, thin vertical legs (frames, posts, etc.). Shoring is very susceptible to buckling. Diagonal bracing placed in both the horizontal planes (plan bracing) and vertical planes will tie individual towers of shoring together into a single stable unit instead of many independent and unstable individual pieces. This will not only prevent buckling of the individual legs, but will assure (so far as insurance is possible) that the shoring shall be able to stand accidental side loads during the progress of construction.

Bracing Components Typology

The term "diagonal brace" encompasses several specific component types, each engineered for a particular system or load:

• Cross Braces (X-Braces): Two members connecting the diagonal corners of a bay. They are frequently used in frame scaffolds and give great shear resistance.
• Ledger-to-Standard Braces (Zig-Zag): Single members connecting a standard at one level to a ledger at another. Common in system scaffolds (e.g., Ringlock, Cuplock).
• Adjustable Push-Pull Props: Heavy-duty, threaded braces designed for precise vertical alignment and resistance to high-compression/tension loads in formwork.
• Plan Bracing: Diagonal members installed in the horizontal plane (e.g., across the top of a shoring system) to prevent twisting (torsional instability) of the assembly.

Best Practices: Engineering, Installation, and Inspection

The efficacy of a bracing system is entirely dependent on its correct implementation. Omission or improper installation negates its structural value.

• Strict Adherence to Engineering Specifications: The placement, type, and number of diagonal braces must be executed precisely according to the temporary works design drawings prepared by a qualified engineer. Field-level modifications without engineering approval are prohibited.
• Verification of Connection Integrity: The full axial load capacity of a brace is achieved only when its end connections (clamps, wedges, pins) are properly secured as per the manufacturer's specifications. A loose or improperly seated connection is a point of failure.
• Progressive Installation and Inspection: Bracing must be installed concurrently with the erection of the structure. A "competent person," as defined by OSHA and other regulatory bodies, must conduct daily inspections to verify that all required braces are present, undamaged, and properly secured.

Conclusion

The diagonal brace is not an accessory; it is a fundamental engineering requirement for the stability of all temporary construction works. Its function in converting lateral shear forces into manageable axial loads through triangulation is the primary mechanism for preventing structural failure.

For construction and engineering firms, correct bracing is a cornerstone of site safety and risk management. For scaffolding and formwork rental companies, the provision of high-quality, compliant bracing components is central to their value proposition. Understanding and respecting the engineering principles of the diagonal brace is essential for ensuring structural integrity and protecting the workforce.

FAQ

What is the difference between longitudinal and transverse bracing?

• Longitudinal bracing runs parallel to the building face, preventing sway along the scaffold's length. Transverse bracing runs perpendicular to it, providing stability against collapse toward or away from the structure.

Can diagonal braces be temporarily removed for access?

• No. Removing a brace compromises structural integrity and creates an immediate collapse risk. Any modification requires a formal redesign and approval by a qualified engineer, often involving compensatory reinforcement in adjacent bays.

Does the installation angle of a diagonal brace matter?

• Yes, the angle is critical. The optimal range is typically 35-55 degrees from the horizontal to efficiently resolve lateral forces. Angles outside this range are inefficient and reduce stability. Always follow engineering specifications.
