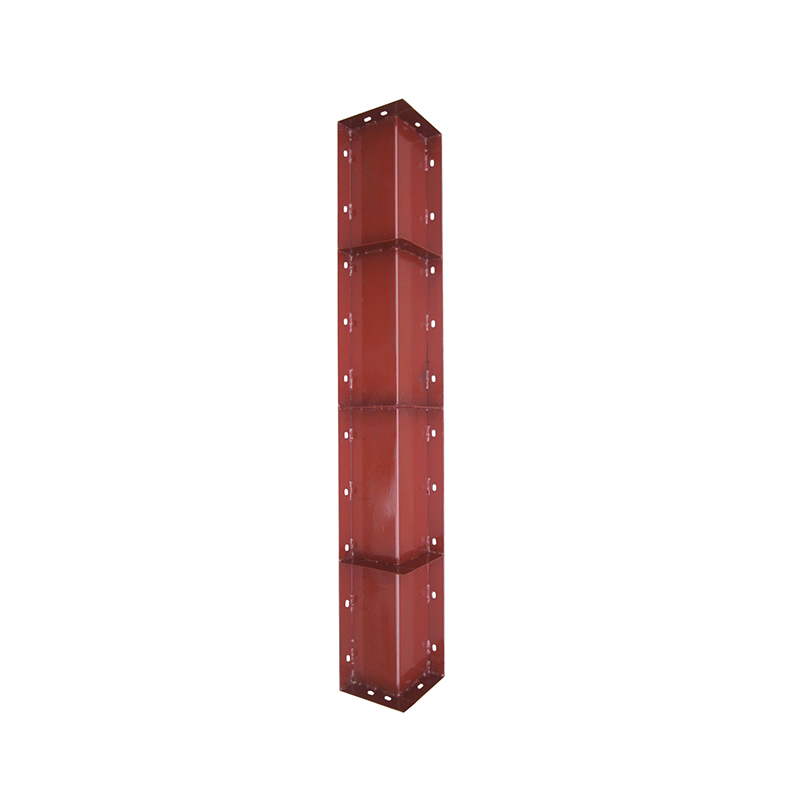

Steel external corner formwork is a specialized part of concrete construction that forms the outer angle (usually 90 degrees) where two walls come together or to form the outside corners of a column.
Our innovative External Corner Formwork will eliminate corner leakage and ensure a sound structure. Specifically designed for commercial construction, civil engineering, and infrastructure projects, our external corner forms provide a strong 90-degree joint needed for a quality finished product. Rental companies and Contractors who rely on heavy-duty formwork available in stock will find our products to be of superior quality, able to stand up against even the toughest job site conditions.
Steel Corner Advantages
- Durability: Unlike timber, steel corners do not warp, absorb water, or splinter. They can be reused hundreds of times.
- Load Capacity: They can withstand high concrete pouring rates and pressures without "blowing out" (bulging).
- Finish Quality: They produce a sharp, clean concrete edge that requires minimal finishing.
- System Compatibility: They are modular and designed to integrate seamlessly with specific proprietary panel systems.
Technical Specifications
|
Feature |
Specification |
|
Material |
High-Strength Q235 / Q345 Steel |
|
Standard Heights |
600mm, 1200mm, 1500mm, 3000mm (Customizable) |
|
Profile Size |
63.5mm x 63.5mm / 100mm x 100mm or Custom |
|
Thickness |
3.0mm, 4.0mm, 5.0mm, 6.0mm |
|
Surface Finish |
Painted, Powder Coated, or Hot-Dip Galvanized |
|
Connection Type |
Wedge Bolt / F-Clamp / Formwork Clamp |
|
Application |
Wall Columns, Beam Corners, Foundation Works |
"Ready to optimize your concrete forming process? Stop compromising on corner quality. Contact our engineering team today for a free consultation and bulk pricing specifically tailored for [Construction/Trader/Rental] needs. We reply within 24 hours."
