In modular scaffold systems, generally a ringlock (Allround), a truss ledger (also known as a double ledger or bridging ledger) is a horizontal member that has reinforcing features.

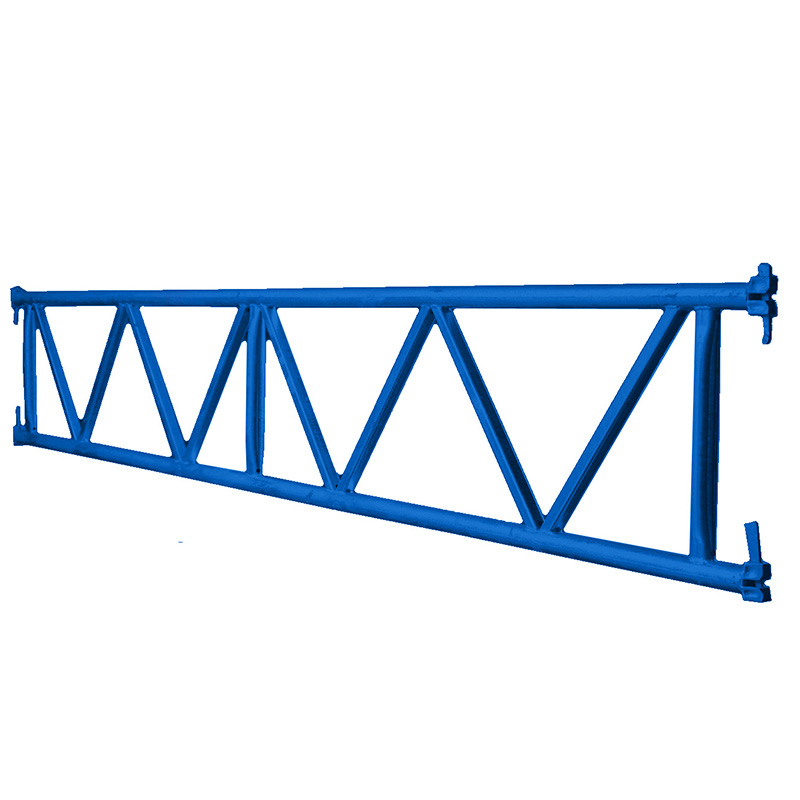

Unlike a standard single-tube ledger, a truss ledger has a second reinforcing tube (truss web) underneath the main horizontal bar. By doing this, a truss ledger can carry much larger loads and provide longer spans, with much less deflection.
Maximize the load capacity of scaffolding systems with Heavy Duty Truss Ledgers. These heavy-duty, engineered, and reinforced ledgers are designed for high-load applications and provide the necessary support for complex scaffolding applications, industrial maintenance, and heavy-duty shoring. Our truss ledgers are manufactured to the highest quality standards and can be used with standard Ringlock systems. As a result, they will last in the toughest conditions.
Key Functions
Community charging overall solution covers all application
-
More Weight/Load Capacity
This type of beam is classified as heavy-duty and will carry an entire scaffold deck or plank across an area where it is required to support a higher weight (such as in cases of material storage). -
Bridging Gaps

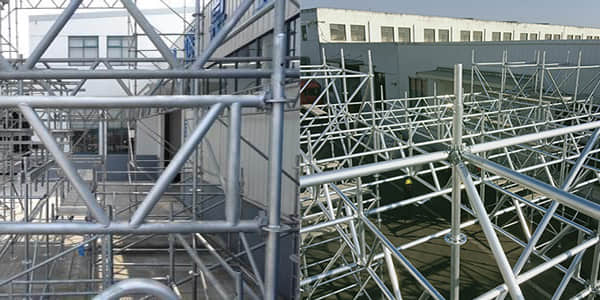

This type of beam can be installed to span wider spaces in a scaffolding system (located in "bridging bays") where there is no ledger available to support that span (such as a doorway, vehicle access point, or area where machinery is located).
-
Platform Support
This type of beam can be utilized as transoms when supporting working platforms that span greater than the normal bay widths (greater than 2.57m/3.07m).
Product Specifications
|
Specification |
Details |
|
Product Name |
Truss Ledger / Double Ledger / Bridging Beam |
|
Material Grade |
High-Strength Steel Q345 / Q235 |
|
Surface Finish |
Hot Dip Galvanized |
|
Tube Size |
Ø48.3mm x 3.2mm / 3.0mm (Customizable) |
|
Available Lengths |
1.57m, 2.07m, 2.57m, 3.07m (and Imperial sizes) |
|
Connection Type |
Ledger ends with cast steel wedge pins |
|
Welding Standard |
CO2 Shielded Arc Welding |
Applications
- Accessing vehicles/equipment via bridging scaffolds.
- Heavy-duty working platform support.
- Turnarounds/maintenance of industrial plants.
- Large Infrastructure Projects such as Bridges and Tunnels.
Where to find components that will give high-performance scaffolding support for your project? [Contact Us Now] to obtain our load capacity charts or to have custom-sized components made as well as bulk pricing.
